Portable Red Light Therapy Panel

The Portable Red Light Therapy Panel is a compact, rechargeable device designed for professional-grade red and near-infrared (NIR) light therapy at home or on the go. Emitting 660nm red light and 850nm near-infrared light, it stimulates cellular energy production from the skin's surface through to muscle, joint, and bone tissue. With a 5200mAh built-in battery, full brightness control, and five optional smart pulsing modes, it delivers a complete and customisable light therapy experience in a hand-held panel.

Key Features

• Dual wavelength output: 660nm red light and 850nm near-infrared light, blendable from pure NIR to pure RED or any combination in between
• 144 LEDs in a 1:1 ratio, 72 red (660nm) and 72 near-infrared (850nm) with a 30° beam angle for focused, direct penetration
• Full 1 to 100% brightness dimming via rotary control wheel
• Five optional smart pulsing modes: 10Hz, 7Hz, 0.25Hz breathing mode, 5Hz pet mode, and 30-minute sleep mode with automatic fade-off
• Steady continuous light mode for standard, non-pulsing sessions
• Built-in cooling fan with silent mode option, capping brightness at 20% when off
• Adjustable session timer: 5, 10, or 15 minutes
• 5200mAh built-in battery with Type-C fast charging, fully charged in approximately 1.2 hours
• Irradiance of 124.88 mW/cm² measured at 3 inches (7.6cm)
• Zero EMF output (0.0μT)
• Soft diffuser included for broader, more diffused light coverage

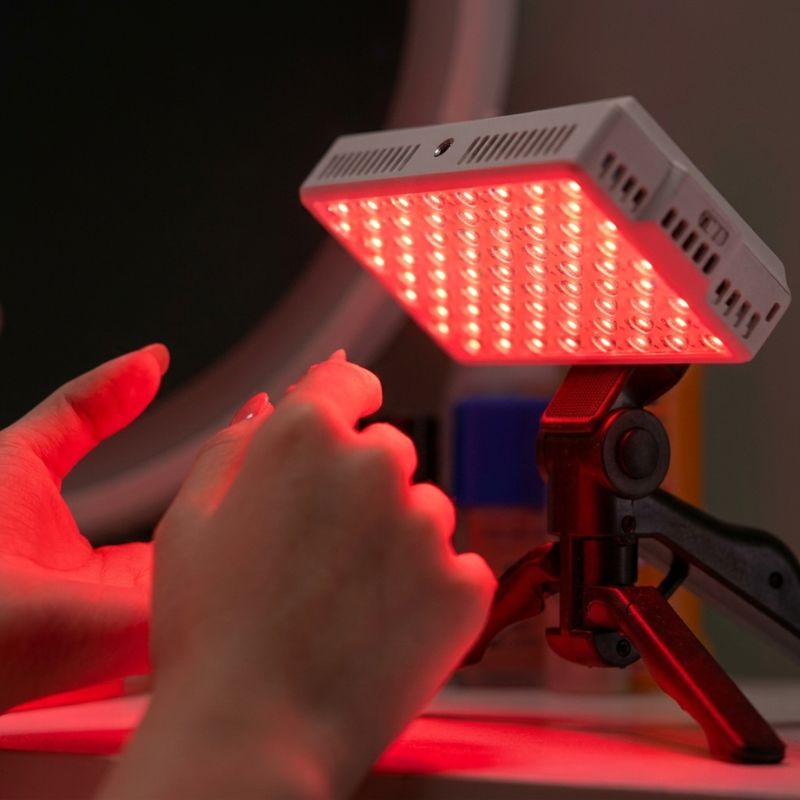

• Standard 1/4 inch screw mount compatible with the included tripod for hands-free positioning
• Includes protective eye goggles, tripod, band, soft diffuser, Type-C cable, and PD power plug with international adapters

Specifications

• Wavelengths: 660nm Red / 850nm Near-Infrared
• LED Quantity: 144 (72 Red / 72 Near-Infrared, 1:1 ratio)
• LED Beam Angle: 30°
• LED Lifespan: 100,000 hours per LED
• Irradiance: 124.88 mW/cm² at 3 inches (7.6cm)
• EMF: 0.0μT
• Watts: 5W per LED
• Material: Aluminium
• Dimming: 1 to 100%
• Smart Modes: 10Hz, 7Hz, 0.25Hz Breathing, 5Hz Pet, Sleep
• Session Timer: 5 / 10 / 15 minutes
• Battery: 5200mAh built-in
• Charging: Type-C, 12V 1.67A (20W max) / 20V 3.25A (65W max)
• Input Voltage: AC 100-240V
• Charge Time: Approximately 1.2 hours
• Dimensions: 142 x 79 x 30mm / 5.59 x 3.11 x 1.18 inches
• Weight: 174g
• Colour: White

How to Use

• Position the panel 8 to 10cm from the skin for optimal results. Use the included tripod for hands-free treatment, hold the panel directly, or use the included strap around your hand to move freely between areas.
• Turn on the device and customise your session using the on-panel controls. Adjust the NIR/RED blend to select 660nm red light, 850nm near-infrared, or any combination of both depending on your treatment goals.
• If treating the face or if the panel is directed near the eyes, wear the included protective goggles.

Recommended Routine

• Use 3 to 5 times per week for best results.
• Treatment time: 5 to 20 minutes depending on the area and your goals.

Frequently Asked Questions

How far away should I hold the panel from my skin?

We recommend positioning the panel 8 to 10cm from the skin for optimal results. This is the distance at which the panel delivers its rated irradiance of 124mW/cm² and where the therapeutic benefit of both wavelengths is most effective. You can use the tripod, strap, or hold it directly to maintain this distance throughout your session.

How long does the battery last per session?

The panel is built with a 5200mAh battery which provides multiple sessions on a single charge depending on your brightness settings and whether the fan is running. A full charge takes approximately 1.2 hours via the included Type-C cable, making it quick to top up between sessions. For best battery life we recommend charging fully before first use.

Can I use the panel on my face?

Yes, the panel is safe to use on the face. We recommend always wearing the included protective goggles during any face session to shield your eyes from direct light exposure. Position the panel 8 to 10cm away and start with shorter sessions of 5 to 10 minutes, building up gradually as your skin adjusts.

How long should I use the panel per session?

We recommend sessions of 5 to 20 minutes per area, 3 to 5 times per week for best results. The built-in session timer can be set to 5, 10, or 15 minutes to help you stay consistent without having to watch the clock. Most users begin noticing results after 2 to 3 weeks of regular use, with more significant improvements typically seen after 4 to 6 weeks of continued sessions.
